What is RF? A Visual Journey from DC to Daylight 📡🌞

If you’ve ever tuned a car radio, connected to WiFi, or heated food in a microwave, you’ve already experienced radio frequency (RF) in action. But what exactly is RF, and how does it fit into the bigger picture of electricity, waves, and communication?

Let’s take a visual journey—from DC (Direct Current) all the way to what engineers jokingly call “daylight frequencies.”

---

1. From DC to RF: The Frequency Spectrum

Electricity can be thought of as a wave, moving up and down over time. How fast it wiggles is called frequency, measured in Hertz (Hz), or cycles per second.

• 0 Hz (DC) → A steady, unchanging current. Like a battery powering a flashlight.
• Low frequencies (Audio range, 20 Hz – 20 kHz) → Sound waves you can hear.
• Radio frequencies (3 kHz – 300 GHz) → The playground of RF engineers. This is where AM/FM radio, WiFi, Bluetooth, TV, and radar live.
• Infrared → Visible Light → Ultraviolet → Keep going higher in frequency, and you eventually reach actual light waves.

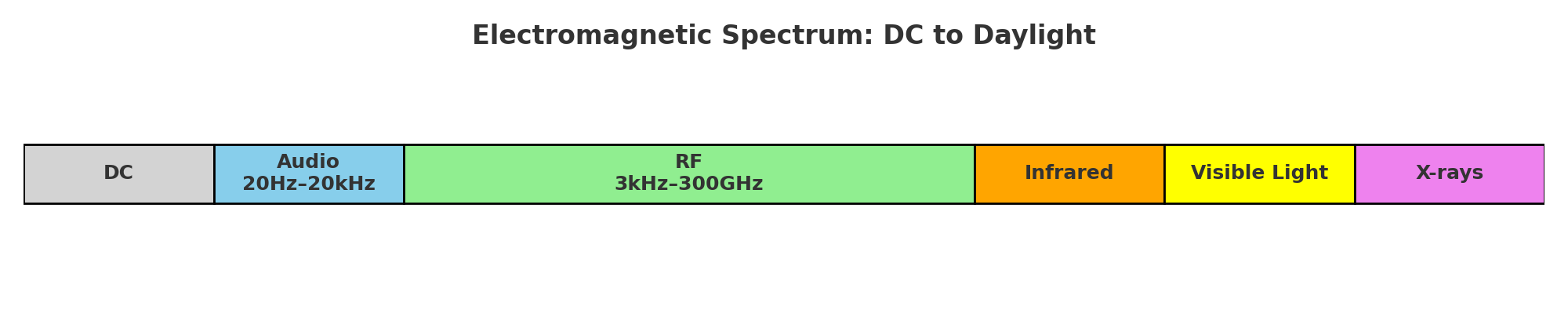

📊 Spectrum Diagram:

---

2. Real-World Examples of RF

RF isn’t abstract—it’s everywhere around you:

• AM Radio → ~1 MHz (waves about 300 meters long 🌊)
• FM Radio → ~100 MHz (waves ~3 meters long)
• WiFi (2.4 GHz) → Wavelength ~12 cm
• Microwave Ovens (2.45 GHz) → Similar to WiFi, but much stronger power, tuned to excite water molecules
• 5G Networks (up to 30+ GHz) → Millimeter waves, with wavelengths as small as a pencil tip ✏️

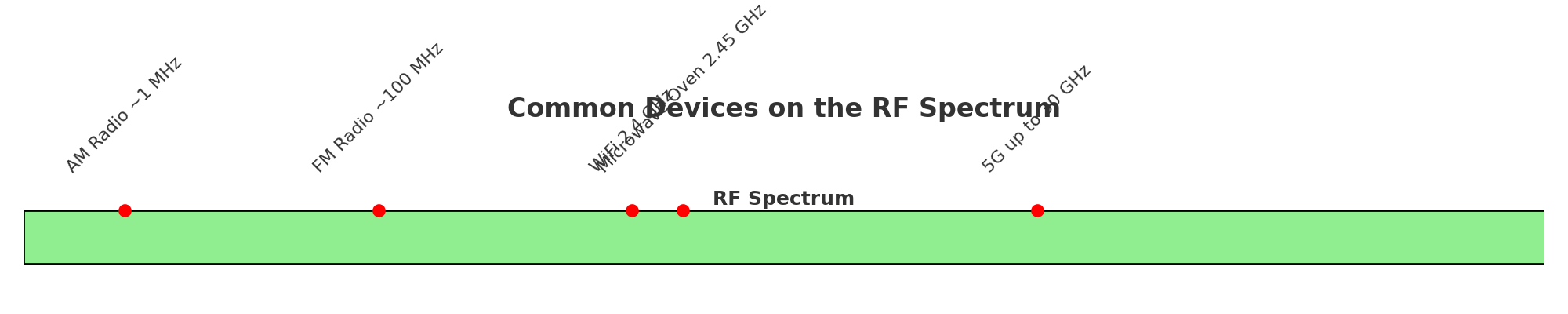

📷 Devices on Spectrum:

---

3. Wave Propagation: How RF Travels

Imagine throwing a pebble into a pond—ripples spread out in all directions. RF waves behave the same way, except they travel at the speed of light (~300,000 km/s) through air.

But unlike sound, RF waves can:
✅ Travel through walls (with some loss)
✅ Bounce off surfaces (reflection)
✅ Bend around obstacles (diffraction)
✅ Combine or cancel each other (interference)

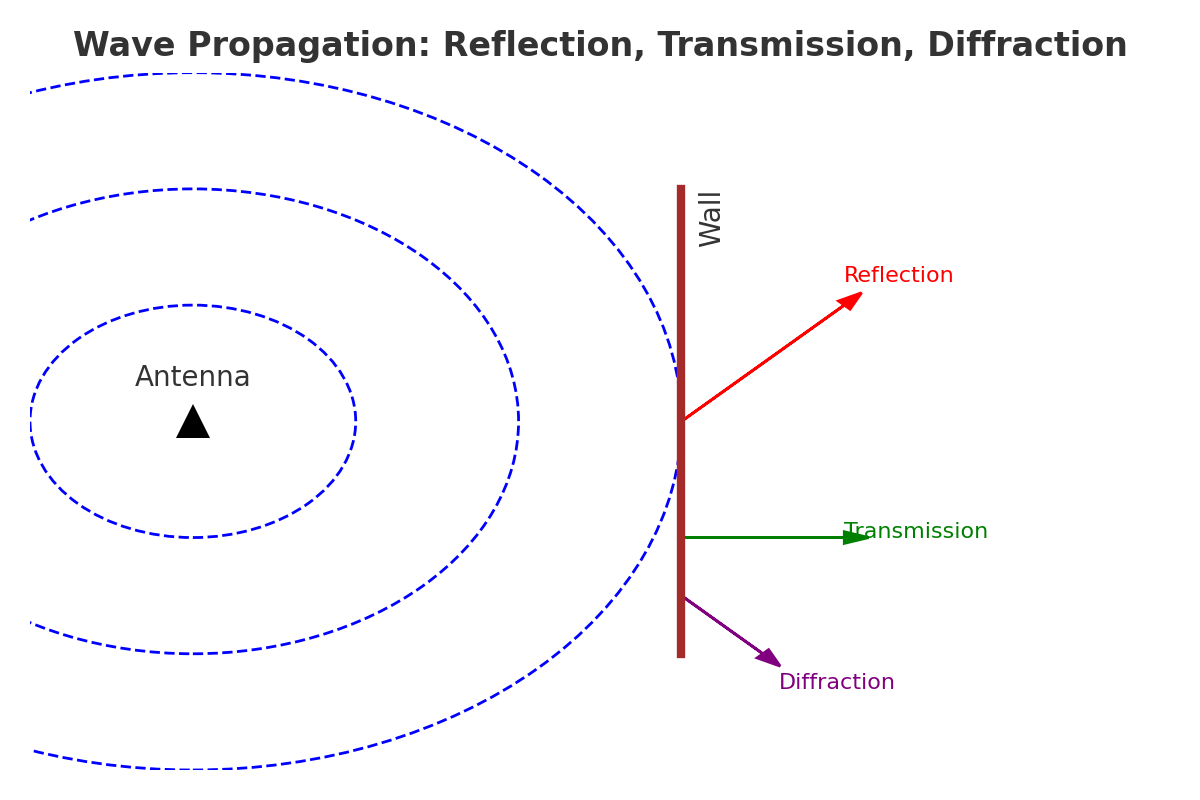

📷 Wave Propagation Example:

---

4. Why “Daylight”?

Engineers sometimes say “from DC to daylight” to describe covering the entire frequency range—from 0 Hz all the way up to optical light. While RF technically stops around 300 GHz, thinking of light as just “really high-frequency RF” makes it easier to grasp that radio and light are part of the same electromagnetic family.

---

5. Quick Interactive Thought Experiment

👉 Grab your phone and try this:

1. Open your FM radio app (if your phone still has one).
2. Tune to 100 MHz—that’s RF in action.
3. Now look at your WiFi settings—your router probably uses 2.4 GHz or 5 GHz.
4. Compare: WiFi is 24–50 times higher frequency than FM radio!

---

6. Key Takeaways

• RF (Radio Frequency) is the part of the electromagnetic spectrum from ~3 kHz to 300 GHz.
• Everyday technologies like radio, WiFi, cell phones, and microwaves use different parts of RF.
• RF waves propagate like ripples, bouncing, bending, and interacting in complex ways.
• “DC to daylight” is a playful way to say all frequencies from 0 Hz up to visible light.

---

Suggested Visuals to Include

• ✅ Frequency spectrum diagram (DC → Audio → RF → Light)
• ✅ Household devices mapped to their frequencies (AM, FM, WiFi, Microwave, 5G)
• ✅ Wave propagation illustration (reflection, transmission, diffraction)
• ✅ Interactive slider (if possible) where users drag across the spectrum to see real-world examples

---

✍️ Next Blog Preview:
In the next post, we’ll dive into “Decibels Demystified: Why RF Engineers Love dB”—a super handy tool for measuring and comparing signals.
